LumiFree｜燈形控制｜Light distribution control｜ spot light, DMX, energy saving

- LumiFree
- Light distribution control
- LC panel
- Driving board

分享到

LumiFree產品方塊圖

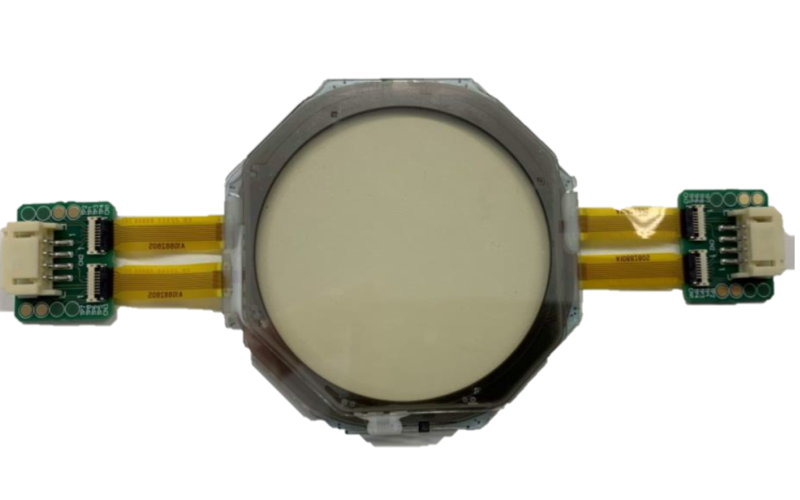

LC panel 簡易規格表

　 Φ50mm Φ80mm Φ110mm
Active area 50mm*50mm 80mm*80mm 110mm*110mm
Dimension (LC panel) 61.2mm*61.2mm*6.7mm
(octagonal)		 90.7mm*90.7mm*4.45mm
(octagonal)		 120.7mm*120.7mm*4.45mm
(octagonal)
Dimension
(LC panel+ relay board)		 131.6mm*61.2mm*6.7mm 163.9mm*90.7mm*6.7mm 193.9mm*120.7mm*6.7mm
Weight
(LC panel+ relay board)		 About 32g TBD TBD
Power consumption About max 500uA TBD TBD
Operating temperature
(on the LC panel)		 -20 ~ 70℃ -20 ~ 70℃ -20 ~ 70℃
Absolute Max Temperature
(on the LC panel)		 100℃ 100℃ 100℃
Status MP Under development Under development

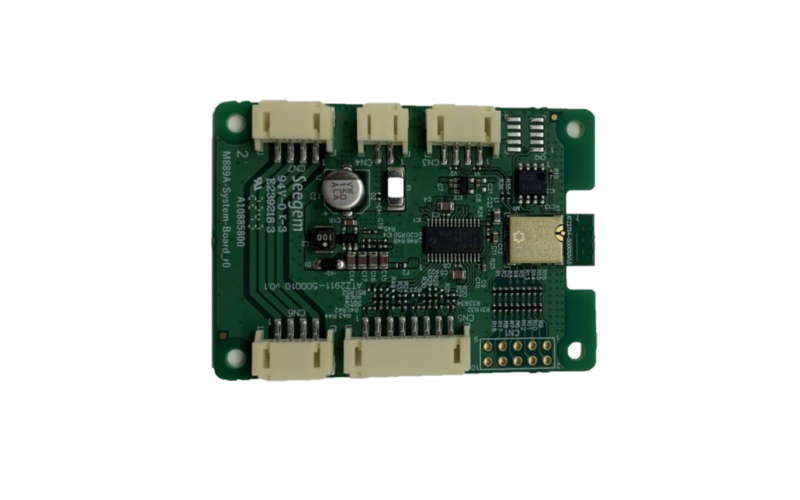

驅動板簡易規格表

Interface Bluetooth Low Energy I2C
Status Mass Production Under development
Sample availability Available Available
Input voltage DC 5.0V DC 5.0V
Other functions Dimming (PWM)
White toning (PWM)		 None
Provided information 1. Protocol information
2. Service application		 Protocol information
Correspondence standard RoHS
BLE SiG		 RoHS
